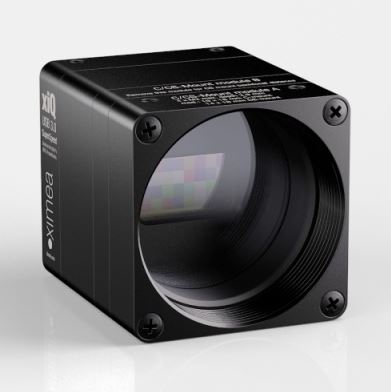

xiSpec VisNIR linescan hyperspectral camera

This Ximea xiSpec VisNIR linescan camera is sensitive in the 470 - 900 nm range. It features over 150 spectral bands and scans up to 850 lines/sec. The spatial resolution equivalent is 2048 pixels x 5 lines in 3 nm steps. It is USB3 Vision compliant and is the smallest and lightest hyperspectral camera available at 26 x 26 x 31mm and 32g.

xiSpec Ximea Linescan VisNIR Technical Specifications
Part NumberMQ022HG-IM-LS150-VISNIR
Resolution2048 x 5
Frame ratesUp to 850 lines/sec
Sensor typeCMOS, hyperspectral filters added at wafer-level
Sensor modelIMEC LS150+
Sensor size2/3"
Sensor active area150+ Bands
Readout methodLinescan wedge
Pixel size5.5 um
ADC -Bits per pixel8, 10 bit RAW pixel data
Data interfaceUSB 3.1 Gen1 or PCI Express (xiX camera model)
Data I/OGPIO IN, OUT
Power consumption1.6 Watt
Lens mountC or CS Mount
Weight 32 grams
Dimensions (W x H x D)26 x 26 x 31 mm
Operating temperature50 °C
Spectral range470 - 900 nm
