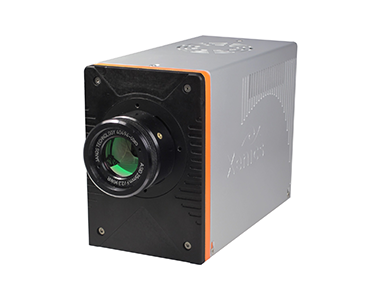

The Tigris-640 is a cooled midwave infrared (MWIR) camera equipped with a state-of-the-art InSb or MCT detector. It has a resolution of 640 x 512 pixels and a pixel pitch of 15µm. This thermal camera is equipped with a number of unique features including a motorized filter wheel with an optional GigE Vision or CameraLink interface.
The Tigris-640-MCT offers 14-bit MWIR images at a maximum full frame rate of 117 Hz. The Tigris-640-InSb features a digital detector with selectable 13, 14 or 15-bit ADC, and a high gain or high dynamic range mode. This version offers a maximum frame rate up to 250 Hz. Frame rate can be increased even further by using it's window-of-interest (WOI) mode.
All Tigris versions are optimized for highly stable thermal imaging and thermography in R&D and industrial applications.
