- Uncooled FPA detector with (1,024 × 768) IR pixels
- Noiseless long-term observations
- Personnel detection range up to 6.1 km
- Vehicle detection range up to 10.7 km

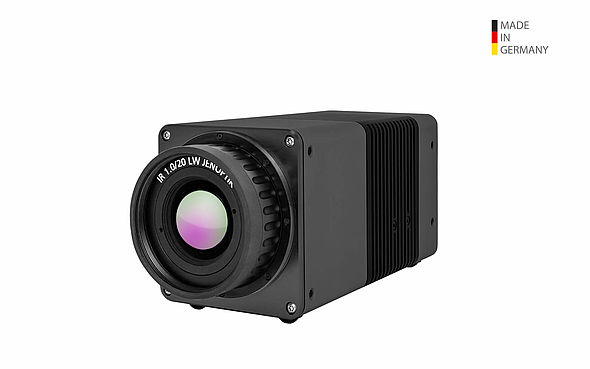

The InfraTec VarioCAM® HD head security is a thermal infrared camera system for securit and suveillance applications, based on an uncooled microbolometer FPA detector with (640 x 480) or (1,024 x 768) IR pixels, and is ideal for demanding monitoring and measurement tasks in stationary or vehicle-mounted operation.
Images with resolutions of up to 3.1 Megapixels can be taken in combination with the integrated MicroScan feature, which was designed for continuous operation.
The VarioCAM® HD head security generates brilliant 16-bit thermographic images of highest quality and offers unprecedented measurement ranges and efficiency, especially during day and night detection and identification of distant persons and vehicles. The various sets of equipment make it easy to adjust the setup to the respective measurement task: The application range includes automatic threshold recognition and signalling up to digital realtime image acquisition via Gigabit-Ethernet. The all-weather light metal housing (IP67) allows trouble-free and inexpensive operation under harsh weather conditions.
The big standard temperature range, a complete optical assortment as well as the extensive equipment and the powerful IRBIS® 3 software for thermographic data acquisition and evaluation make the VarioCAM® HD head security an ideal tool for monitoring and investigation. With the application-specific configuration, this stationary thermographic system is even suited for tasks, which require continuous and automatic operation.
|Camera Model||VarioCAM® HD head 900 security|
|Spectral Range||7.5-14 µm|
|Detector||Uncooled Microbolometer Focal Plane Array|
|Detector Format||1,024 x 768|
|Image format with opto-mechanical MicroScan (IR pixels)||2,048 x 1,536|
|Temperature measuring range||-40 - 2,000°C|
|Measurement accuracy||± 1 °C or ± 1 %|
|Temperature resolution @ 30 °C||Up to 0.02 K|
|Frame Rate||Full-frame: 30 Hz (1,024 x 768), Sub-frame formats: 60 Hz (640x480)/ 120 Hz (384x288)/ 240 Hz (1,024 x 96)|
|Storage media||SDHC Card, external control computer for camera control and data acquisition|
|Image storage||Time-, trigger-, and temperature controlled recording of 16 bit single frames or image sequences with timestamp, video streaming in MPEG format|
|Lens mount||Bayonet to comfortably switch objectives, automatic objective detection and data transfer; screw-on interface|
|Focus||Motor-driven, automatic or manual, accurately adjustable|
|Zoom||Up to 32x digital, stepless|
|Personnel detection range||Up to 6.1 km|
|Vehicle detection range||Up to 10.7 km|
|Dynamic range||16 bit|
|Interfaces||GigE Vision, DVI-D (HDMI), C-Video, RS232, USB 2.0, WLAN|
|Trigger||2x digital I/O, 2x analogue I/O|
|Tripod adapter||1/4" photo thread|
|Power supply||AC Adapter, 12-24V DC, PoE|
|Storage and operation temperature||-40 - 70°C, -25 - 55°C|
|Protection degree||IP54, IEC 60529, IP67 with screw-on interface|
|Impact strength/vibration resistance in operation||25 G (IEC 68-2-29), 2 G (IEC 68-2-6)|
|Dimensions, weight||(221 x 90 x 94) mm, 1.15 kg (basic configuration with standard lens)|
