- 2 years warranty
- High sensitivity
- High image resolution (640x480 pixels)
- Compact form factor
- Higher speeds (Up to 60 Hz frame rate) with increased windowing mode
- Industry standard compatibility
- Higher pixel operability
- Lower detector NETD of 50 mK
Features
Applications
- Hot spot detection
- Bio medical imaging
- NDT: Lock-in thermography
- Quality control and quality assurance
- Real-time process control and monitoring

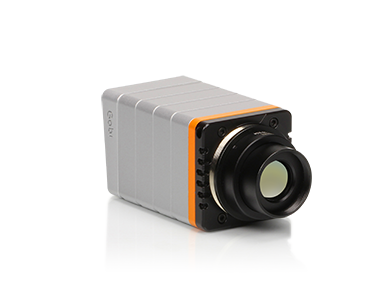

The Xenics Gobi+ 640 is a high performance thermal imager with improved capabilities on the original Gobi camera.
This camera comes in full 640x480 pixel resolution and is enhanced with a combination of improvements including higher frame rates (up to 60 Hz) with increased windowing mode, as well as higher pixel operability and lower detector Noise Equivalent Temperature Difference (NETD) of 50 mK.
This system is fully flexible in terms of system integration with a wide variety of lenses and software customization tools available. CameraLink and GigE Vision interfacing available. Consistent with the original Gobi, the Gobi+ retains it's compatibility with industry standard accessories such as National Instruments and Euresys Frame Grabbers.
| Camera Model | Gobi+ 640 GigE | Gobi+ 640 CL |
|---|---|---|
| Image format | 640 (w) x 480 (h) pixels | 640 (w) x 480 (h) pixels |
| Pixel pitch | 17 μm | 17 μm |
| Detector type | a-Si microbolometer | a-Si microbolometer |
| Integration type | Rolling shutter | Rolling shutter |
| Active area and diagonal | 10.88 mm x 8.16 mm (13.6 mm diagonal) | 10.88 mm x 8.16 mm (13.6 mm diagonal) |
| Detector NETD (Noise Equivalent Temperature Difference) | <50 mK (at 30 Hz, 300 K, F/1) | <50 mK (at 30 Hz, 300 K, F/1) |
| Spectral range | 8 μm to 14 μm | 8 μm to 14 μm |
| Pixel operability | >99.5% | >99.5% |
| Maximum frame rate (full frame) | 60 Hz or 9 Hz | 60 Hz |
| Integration time range | 1 μs - 80 μs | 1 μs - 80 μs |
| Region of interest | Yes | Yes |
| Minimum region size | 160 x 120 pixels | 160 x 120 pixels |
| Analog to Digital (ADC) | 16 bits | 16 bits |
| Command and control | GigE Vision | CameraLink |
| Digital output format | 16 bit GigE Vision | 16 bit base CameraLink |
| Trigger | in or out via SMA (configurable) (not for 9Hz) | in our out via SMA or CL-CC1 (configurable) |
| Ambient operating temperature range | -40ºC to 60ºC | -40ºC to 60ºC |
| Storage temperature range | -45°C to 85°C | -45°C to 85°C |
| Power consumption | 4.5 W | 2 W |
| Power supply | DC 12 V | DC 12 V |
| Shock | 40 g, 11 ms according to MIL-STD810G/MIL-STD883J | 40 g, 11 ms according to MIL-STD810G/MIL-STD883J |
| Vibration | 5 g (20 Hz to 2000 Hz) according to MIL-STD810G/MIL-STD883J | 5 g (20 Hz to 2000 Hz) according to MIL-STD810G/MIL-STD883J |
| IP rating | IP 40 | IP 40 |
| Dimensions (W x H x L) excluding lens | 49 x 49 x 79 mm | 49 x 49 x 62 mm |
| Weight (excluding lens) | 263 g | 208 g |
| Optical interface | M42 or M34 x 0.75 | M42 or M34 x 0.75 |
| Connector GigE | RJ-45 | NA |
| Connector CameraLink | NA | Standard SDR |
| Connector power | Hirose HR10-7R-SA(73) | Hirose HR10-7R-SA(73) |
| Connector trigger | SMA | SMA |
