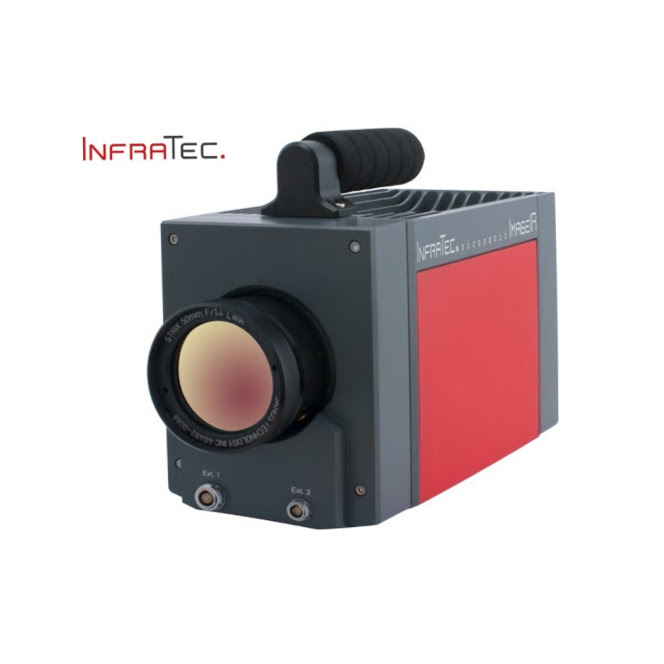

ImageIR® 10300
ImageIR - Infrared Imaging

The ImageIR® 10300 with its enormous geometric resolution marks the current highpoint of the high-end camera series produced in Dresden. The detector format, in combination with the small pitch dimension of 10 µm, ensures that measurement, inspection and surveillance tasks can be solved even more efficiently than before. Everywhere that very fine structures need to be analysed on large-surface measurement objects, for example, users save time, effort and thus costs.

InfraTec ImageIR® 10300 Technical Specifications
Camera ModelimageIR® 10300
Spectral Range3.6 - 4.9 µm
Pitch10 µm
DetectorInSb
Detector Format (IR pixels)1,920 x 1,536
Image AcquisitionSnapshot
Readout ModeITR/IWR
Aperture Ratiof/2.0 or f/3.0
Detector CoolingStirling cooler
Temperature Measuring Range-40 - 500 °C
Measurement Accuracy±1°C or ±1%
Temperature Resolution @ 30°CUp to 0.03 K
Frame Rate (full frame mode/960x768)100Hz/300Hz, (identical FOV)
Window ModeYes
FocusManual, motorised or automatically depending on model
Dynamic Range13 bit
Integration Time1-20,000 µs
Rotating Aperture Wheel and Filter Wheel (depending on model)Up to 5 positions
Multi Integration Time (depending on model)Yes
Interfaces10 GigE, USB 2.0, HDMI*
Trigger2 in/ 2 out, TTL
Analogue Signals, IRIG-B (depending of model)2 in/2 out, yes
Tripod Adapter1/4" and 3/8" photo thread, 2XM5
Power Supply24V DC, wide-range power supply (100-240) VAC
Storage and Operation Temperature-40 - 70°C, -20- 50°C
Protection DegreeIP54, IEC 60529
Dimensions, Weight241 x 123 x 160 mm, 4.7 kg (without lens)
