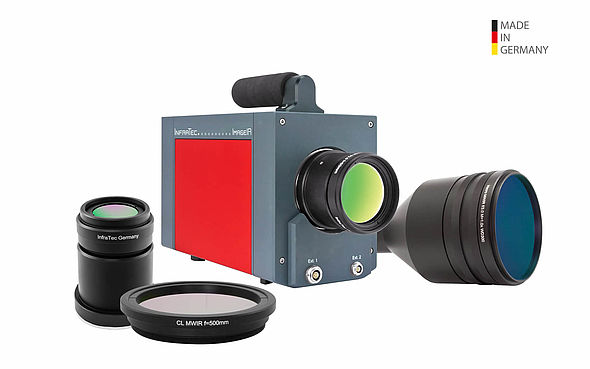

Infratec ImageIR® 5300 Infrared Camera

The fast stationary infrared camera for precise and spectral thermography

  • Calibration of various calibration curves for most precise temperature measurement
  • Motorized controllable filter wheel for spectral thermography with up to four special filters included
  • Snap-shot detector for precise image acquisition at frame rate of up to 25 kHz
  • High repeatability due to reliable thermal decoupling of lens and electronics module
Infratec ImageIR® 5300 Technical Specifications
Camera ModelImageIR® 5300
Spectral Range2.0 - 5.7 µm
Pitch30 µm
DetectorMCT or InSb
Detector format (IR pixels)320 x 256
Temperature measuring range-40 - 1500°C (up to 3000°C)
Measurement accuracy± 1°C or ± 1%
Temperature resolution at 30°C0.015 K
Frame rate (full screen/ half screen/ quarter screen/ sub-frame)Up to 450 / 1,500 / 4,500 / 25,000 Hz
Dynamic range16 bit
Integration time1-20,000 µs in increments up to 1 µs
Rotating filter wheel, rotating aperture wheelYes, Yes
InterfacesGigE, CAMLink, HDMI
Trigger3 IN / 2 OUT, TTL
Analog signals, IRIG - B1 IN, yes
Dimensions (mm)244 x 120 x 160
Weight3.3 kg
