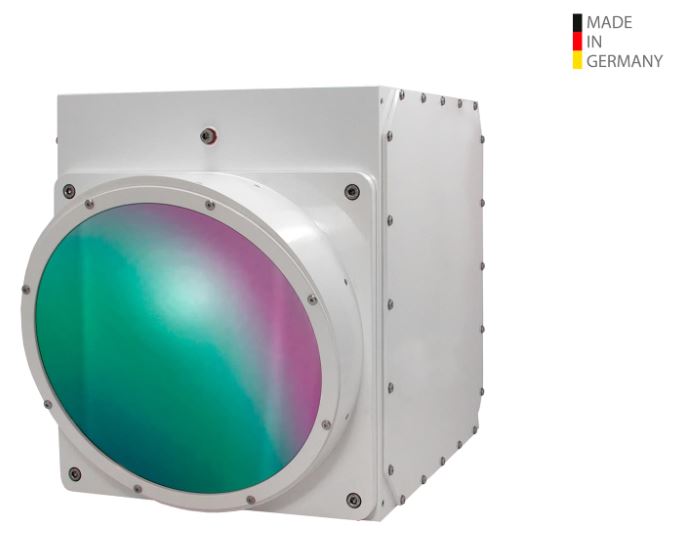

ImageIR 8300 Z

The ImageIR camera series is a high-precision measurement solution that has been an indispensable tool in high-quality research, development and automation solutions for many years.

The combination of this thermal imaging system with a premium 30× zoom lens facilitates complex observation and investigation, such as border control, vehicle observation and monitoring of the environment or animals. The detection range is outstanding: vehicles can be detected up to 18km and persons up to 15km.

The rugged and exact power zoom together with the high-performance 30× zoom lens achieves a continuously adjustable field of view from (39.8×32.3)° down to (1.3×1.0)° with a detector format of (1,280×1,024) IR pixels. Therefore, also objects being far away can be displayed with a high-resolution infrared image. The camera versions ImageIR® 8300 Z and ImageIR® 9300 Z with detector formats of (640×512) and (1,280 × 1,024) IR pixels are available.

The customisable software interface offers time coded real-time playback

InfraTec ImageIR 8300 Z Technical Specifications
Camera ModelImageIR 8300 Z
Spectral range3.6 - 4.9 µm
DetectorInSb
Detector format (IR Pixels)640 x 512
Image acquisitionSnapshot
Readout modeITR/ IWR
Aperture ratiof/5.5
Detector coolingStirling cooler
Temperature measuring range(-10 - 200)°C, up to 500°C
Temperature resolution @ 30°C0.02 K
Frame rate (full/half/quarter/sub frame)200/570/1,000/4,700 Hz
Window modeYes
FocusMotor focus with absolute focussing
Focusing time300 m up to ∞: ≤0.5s
Lens focal length28-850mm (30x optical zoom)
Zoom setting time(100…850) mm: ≤2s
Field of View(19.8×15.9)°…(0.6×0.5)°
Minimum object distance3 - 50m
Max. detection range (vehicle/person)18/15 Km
Max. identification range (vehicle/person)12/9.5 Km
Dynamic range13/ 14 bit
Integration time0.6 - 20,000 µs
Image synchronizationInternal, IRIG-B, external
InterfacesGigE-Vision compatible, RS232, HDMI
TriggerSyncIN, 2 IN / 2 OUT, IRIG
Tripod adapter8 x M6
Power supply24V DC, wide-range power supply (100-240)V AC
Storage and operation temperature(-40…70)°C, (-20…50)°C
Protection degreeIP54, IP65
Dimensions, weight(360 x 240 x 270)mm, 17.5 Kg
Further functionsMulti Integration Time
