- 2 years warranty
- Made in Europe (easy to export)
- Smallest SWIR line-scan camera
- Full flexibility in integration time settings
- High sensitivity for low-light conditions
- Standard GigE Vision/CameraLink and trigger functionality
- Compatible with a variety of Framegrabbers (CameraLink version), Power over Ethernet (GigE version)
- 14 bit image digitalization
- High resolution: 1024 pixels in 1 line
- External trigger for signal synchronization
- High line rate imaging at more than 40000 lines per second
- High dynamic range mode available

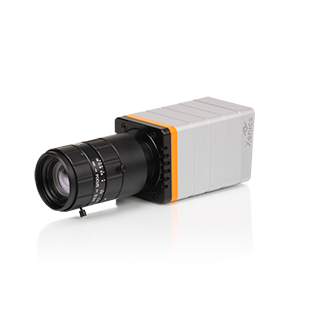

Machine vision inspection using Lynx-1024 provides you with high resolution information about quality assurance measurements. The SWIR camera matches the absorption spectra of low-level photon emissions, is less sensitive to emissivity changes for thermal measurements and provides increased subsurface penetration depth images.
The Lynx-1024 offers in many ways an affordable solution. The small form factor, high resolution and smallest pixel pitch of 12.5 µm allows more precision and optimization of compact systems with lower cost lenses.
The Lynx-1024-CL is perfectly suited for high speed scanning with high line rates up to 40 kHz. In addition the camera comes with an industry standard CameraLink interface for data transfer at full line rate. You can change integration times from 1 µs to several minutes.
The Lynx-1024-GigE is also a flexible solution with an industry standard GigE Vision and Power over Ethernet interface. Furthermore you can change integration times from 1 µs to 1 sec. You can choose from various configurations in between High Sensitivity mode (HS) or High Dynamic Range mode (HDR). You will reach optimal image quality with low dark current and excellent signal to noise ratios.
Camera Model | Lynx 1024-CL | Lynx 1024-GigE |
---|---|---|
Array type | InGaAs | InGaAs |
Resolution | 1024x1 | 1024x1 |
Pixel size | Square pixels: 12.5μm x 12.5μm, Rectangular pixels: 12.5μm x 250μm | Square pixels: 12.5μm x 12.5μm, Rectangular pixels: 12.5μm x 250μm |
Spectral band | 0.9 μm to 1.7 μm | 0.9 μm to 1.7 μm |
Peak Quantum Efficiency (QE) | ≈ 80 % @ 1.6 μm | 80% |
Pixel operability | >99% | >99% |
Array length | 12.8 mm | 12.8 mm |
Array cooling | Uncooled | Uncooled |
Dark current | Square pixels: 1.5 x 10⁶ e-/s, Rectangular pixels: 1.5 x 10⁷ e-/s | Square pixels: 1.5 x 10⁶ e-/s, Rectangular pixels: 1.5 x 10⁷ e-/s |
Maximum line rate | 40 kHz | 40 kHz |
Pixel rate | 50 MPixels/sec | 50 MPixels/sec |
Exposure time range | Full flexibility in settings from 3 μs to several seconds | Full flexibility in settings from 3 μs to several seconds |
CDS | Correlated Double Sampling | Correlated Double Sampling |
Gain settings | Various settings from 30 fF (HS) till 2130 fF (HDR) | Various settings from 30 fF (HS) till 2130 fF (HDR) |
Pixel well depth | from 450 Ke- (HS) till 32 Me- (HDR) | from 450 Ke- (HS) till 32 Me- (HDR) |
Gain | From 8 e-/ADU count (HS) till 580 e-/ADU count (HDR) | From 8 e-/ADU count (HS) till 580 e-/ADU count (HDR) |
Dynamic range | From 280:1 (HS) till 2600:1 (HDR) | From 280:1 (HS) till 2600:1 (HDR) |
ADC | 14 bit | 14 bit |
Optical interface | C-mount (optional filter retaining ring), F-mount (Optional) | C-mount (optional filter retaining ring), F-mount (Optional) |
Camera control | CameraLink, Xeneth API/SDK | Ethernet (TCP/IP): Xeneth API/SDK |
Image acquisition | Integrate While Read (IWR)/ Integrate Then Read (ITR); Snapshot acquisition | Integrate While Read (IWR) / Integrate Then Read (ITR); Snapshot acquisition |
Trigger | Trigger in and out; LVCMOS | Trigger in and/or out; LVCMOS |
Operating mode | Stand-alone or PC-controlled | Stand-alone or PC-controlled |
Power consumption | +/- 2.6 W | +/- 4.6 W |
Power supply | 12 V | 12 V |
Ambient operating temperature | -40ºC to 70ºC (industrial components) | -40ºC to 70ºC (industrial components) |
Storage temperature range | -50ºC to 85ºC (industrial components) | -50ºC to 85ºC (industrial components) |
Dimensions (W x H x L mmᵌ) | 49 x 49 x 53 | 49 x 49 x 71 |
Weight camera head | < 153 g | < 208 g |
