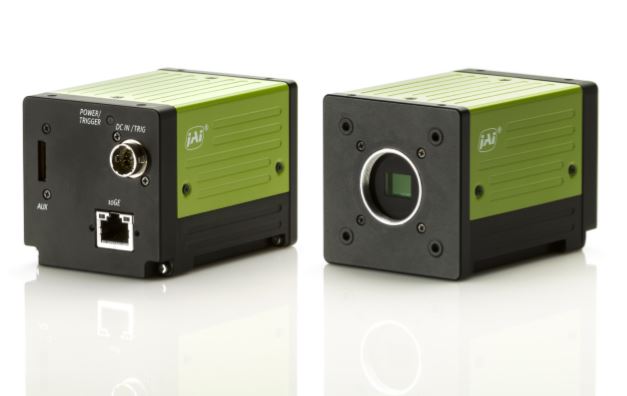

JAI FS 3200D Multi-spectral Camera

Introducing the JAI Fusion Series mutispectral prism camera, with two 1/1.8" CMOS imagers that simultaneously captures visible color and near-IR images through the same optical path. The cameras feature 3.45x3.45 μm pixel sizes with support for 1x2, 2x1 or 2x2 binning.

This system reaches up to 123 fps over high performance 10GBASE-T (10 gigabits per second) interface and is backwards compatible to NBASE-T (5GBASE-T/ 2.5GBASE-T) and standard GigE (1000BASE-T). Single and multi-ROI modes provide higher speeds with lower processing loads, with 8.10, or 12-bits per channel.

With excellent shock and vibration resistance and and GigE Vision 2.0 interface with dual stream output, this system is an excellent solution for your high-speed multispectral imaging needs!

SpecificationsFS-3200D-10GE
Sensor1/1.8" 2-CMOS global shutter (JMX252)
Active pixels2048 (h) x 1536 (v) x 2 (Bayer/NIR)
Frame rate, full frame123 frames/sec. @ 8-bit
Active area7.07 mm (h) x 5.30 mm (v) - 8.83 mm diagonal
Pixel size3.45 um x 3.45 um
System clock74.25 MHz (for pulse generator)
Read out modes Full ROI (single): 2048 (h) x 1536 (v) for each channel, H: 16 to 2048 pixels in 16 pixel steps, V: 8 to 1536 lines in 4 line steps. ROI (multi) Binning: Up to 64 areas can be defined, no overlap, 1x2, 2x1, 2x2 (NIR only)
EMVA 1288 parameters12-bit output format 4-30 p (525 nm), 8.86 p (819 nm), 39-45 dB green, 39.02 dB NIR
Traditional SNRcolor: >60 dB (o dB gain, 10-bit), NIR: >60 dB (o dB gain, 10-bit)
Video signal output (two streams)Visible:Bayer RGB, BayerRG10, BayerRG10Packed, BayerRG12, BayerRG12Packed, RGB8, RGB10V1Packed, RGB10P32. NIR: Mono8, Mono10, Mono10Packed, Mono12, Mono12Packed.
GainManual control - master mode 0 to +24 dB, R/B channels - individually -7 to +15 dB, Auto gain control - off, continuous, one-push
White balance (Color channel only)Off, 4 presets (3200K, 5000K, 6500K, 7500K) or one-push/continuous AWB (3000K to 9000K)
Gamma/LUT0.45 to 1.0 (9 Steps) or 257-point programmable LUT
Shading correctionFlat shading, color shading
Trigger inputOpto in (2), Pulse generators (4), software, TTL in (2), NAND Out (2), User Output (4)
Exposure modesTimed/EPS, Trigger Width (to ∞), Auto, Delayed readout option
Electronic shutter (can be set independently for each channel) 14.73 µs to 8 sec. in 1 µs steps
Auto Level Control (ALC)Shutter range from 100 µs, gain range from 0 dB to +24 dB. Tracking speeds and max. values adjustable
Blemish compensationUp to 200 px/channel
Operating temp. (ambient) -5°C to +45°C (20 to 80% non-condensing)
Storage temp. (ambient) -25°C to +60°C (20 to 80% non condensing)
Vibration3G (20 Hz to 200Hz, XYZ directions)
Shock50G
RegulationsCE (EN61000-6-2, EN61000-6-3) FCC Part 15 Class B, RoHS/WEEE
Power (12-pin)+10V to +25V DC. 10.4 W typical @ +12 V
Lens mountC-mount
Dimensions (H x W x L)62mm x 62mm x 86.5mm (excl. connectors)
Weight270 g
