- Spectral Bands: 224
- Spatial Sampling: 640 pixels
- Frame Rate: 670 fps full frame, 15000 fps with 4 bands selected

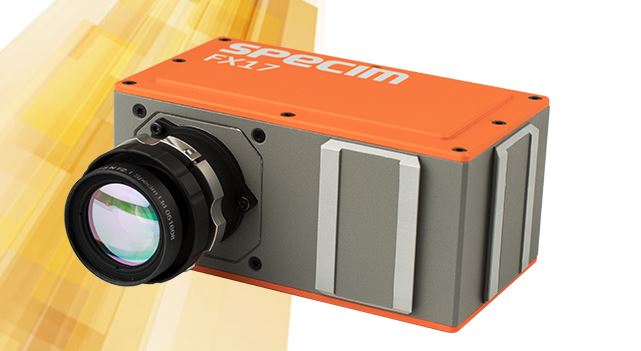

Specim's award winnipeg FX17 is a small, fast & affordable NIR hyperspectral camera specifically designed for industrial machine vision.
SMALL SIZE: Specim FX17 has a much smaller footprint than traditional hyperspectral cameras
FAST OPTICS: High sensitivity enables good signal with short integration times. High signal to noise ratio enables better detection accuracy on high speeds.
FLEXIBILITY: Free wavelength selection from 224 bands
HIGH SPEED: More frames per second than you ever need! Full range (224 bands) = 670 fps, three specific regions selected (4 bands) = 15000 fps
PLUG N' PLAY: Every Specim FX17 unit gives idential results.
INTEGRATION: Acquisition software & SDK: LUMO Toolkit. Camera Interface: CameraLink or GigE Vision
MULTIPLE MOUNTING OPTIONS
|Spectral Range||900-1700 nm|
|Spectral FWHM||8 nm|
|Spatial Sampling||640 pixels|
|Frame Rate||670 fps full frame, 15000 fps with 4 bands selected|
|Camera SNR (Peak)||1000:1|
|Camera Interface||CameraLink or GigE Vision|
|Dimensions||150 x 85 x 75 mm|
