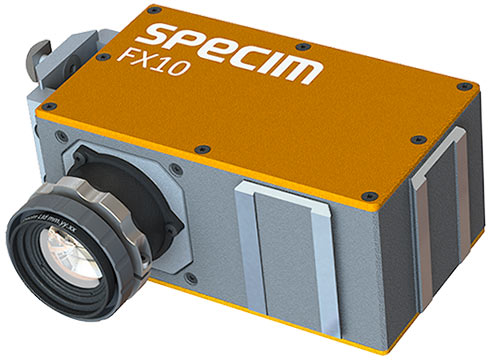

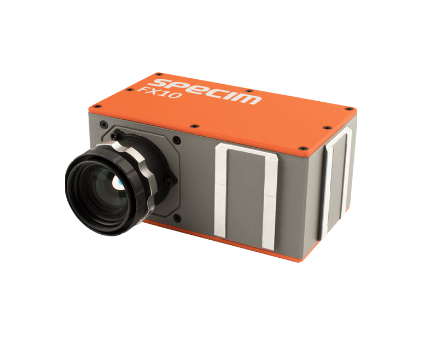

Specim’s award winning FX10 is a small, fast & affordable hyperspectral camera specifically designed for industrial machine vision.

FLEXIBILITY: Free wavelength selection from 220 bands within the camera coverage

SMALL SIZE: Much smaller footprint than traditional hyperspectral cameras

FAST OPTICS: High sensitivity enables good signal with short integration times, high signal to noise ratio enables better detection accuracy on high speeds

HIGH SPEEDS: More frames per second than you will ever need! Full range (224 bands) = 330 fps, three specific regions selected (5 bands) = 6510 fps

PLUG ‘N’ PLAY: Every Specim FX10 unit gives identical results!

INTEGRATION: Aquisition software and SDK: LUMO Toolkit, CameraLink or GigE Vision camera interface options

Multiple lens mounting options!

Spectral CameraFX10
Spectral Range400-1000 nm
Spectral Bands224
Spectral FWHM5.5 nm
Spatial Sampling1024 pixels
Frame Rate330 fps (full frame), up to 9900 fps with 1 band selected
FOV 38 ̊
F-numberF/1.7
Camera SNR (Peak)600:1
Camera InterfaceCameraLink or GigE Vision
Dimensions150 x 85 x 71 mm
Weight1.26 kg
